Well barrier schematics with bohris.cloud
Define and manage well integrity across the full lifecycle.
The Importance of well barrier schematics
Well barrier schematics play a crucial role in ensuring the integrity and safety of a well throughout its entire lifecycle – from drilling and completion to suspension or abandonment. By clearly visualising the primary and secondary barriers, they provide a structured overview of all elements that protect against uncontrolled flow from the reservoir
to the surface.

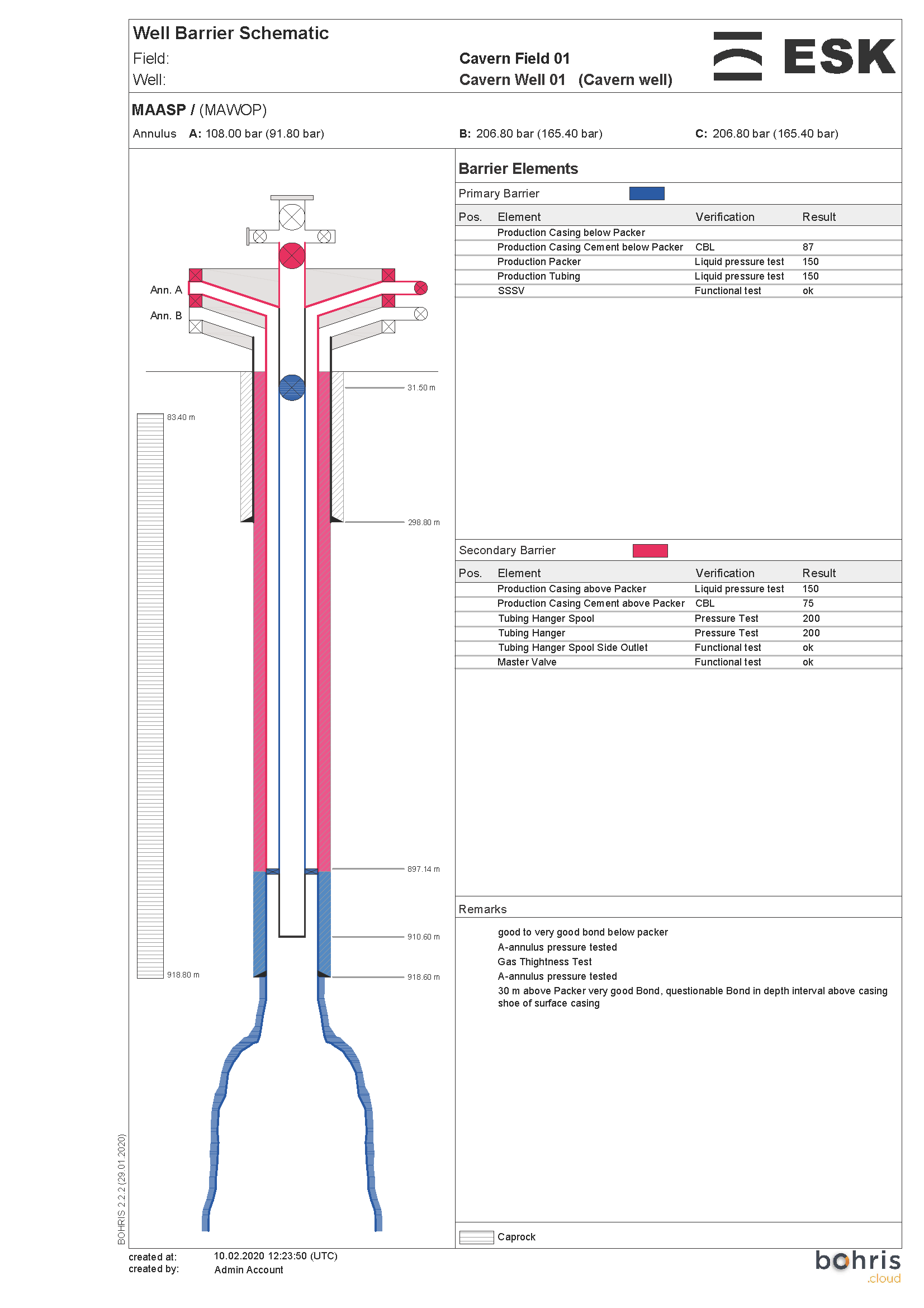

In bohris.cloud, these schematics are generated automatically based on your well data and follow industry-standard formats. This ensures consistent documentation, supports regulatory compliance, and enables technical teams to make informed decisions quickly and transparently.
Key features and benefits drawing well barrier schematics
Standardized two-barrier visualization: Clearly distinguish between primary and secondary barriers in line with industry standards.
Linked to real well data: Barrier elements are automatically pulled from your borehole configuration and test results.
Linked to real well data: Barrier elements are automatically pulled from your borehole configuration and test results.
Support for regulatory reporting: Generate export-ready schematics for documentation and authority submission.
Up-to-date and version-controlled: Always work with the latest configuration – changes are tracked and timestamped.
Customisable per operator or region: Tailor visuals and terminology to internal policies or national standards.
Integrity status tracking: Display tested, pending or failed elements with color coding or annotations.
Use bohris.cloud wellbarrier schematics in Practice
bohris.cloud makes it easy to create and maintain high-quality well barrier schematics throughout the lifecycle of a well. From the initial design phase to regular integrity checks and final abandonment, all relevant barrier elements are visualised in one place and kept up to date as data evolves.
See it in action:
In this short video, we demonstrate a typical workflow using bohris.cloud – from defining barrier components and assessing their status, to exporting a finished schematic for internal review or submission to regulatory bodies. Try it by yourself with our free Account.
Questions about bohris.cloud or wellbarrier schematics? Reach out via our contact form! Our team is ready to provide expert guidance and tailored solutions. Let us help you optimize your operations and unlock new insights.
